ISO 80369-20 Connector Assembly Device
KingPo supplied documentation identifies the Connector Assembly Device as the force-and-torque assembly device used when connecting a reference connector with a test sample before selected ISO 80369-20 workflows.
| Documented model | ISO80369-20; certificate page shows KP-0369A |
|---|---|
| Use when | The setup requires controlled connector assembly before leakage, stress, unscrewing or overriding checks |
Apply axial force and torque during connector assembly

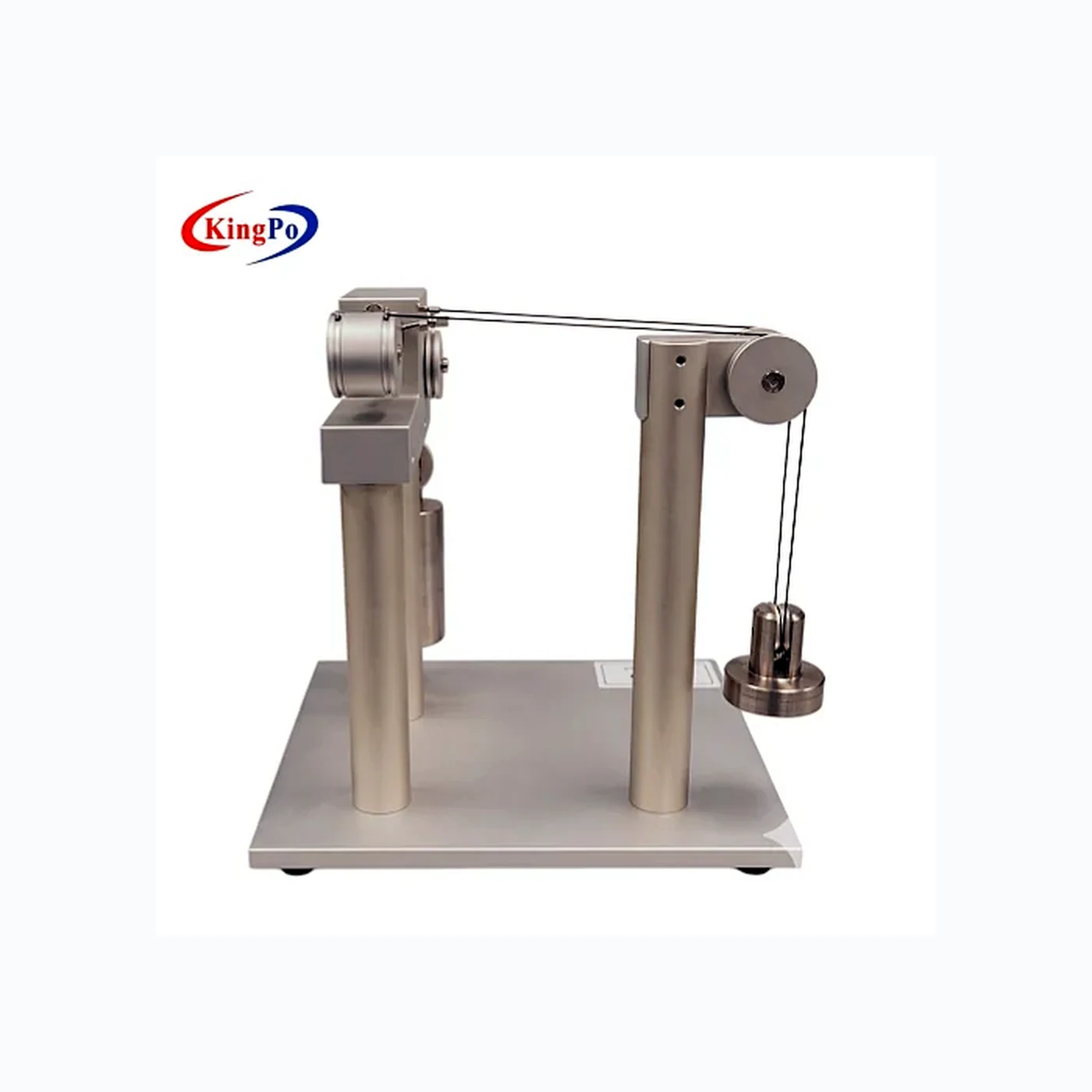

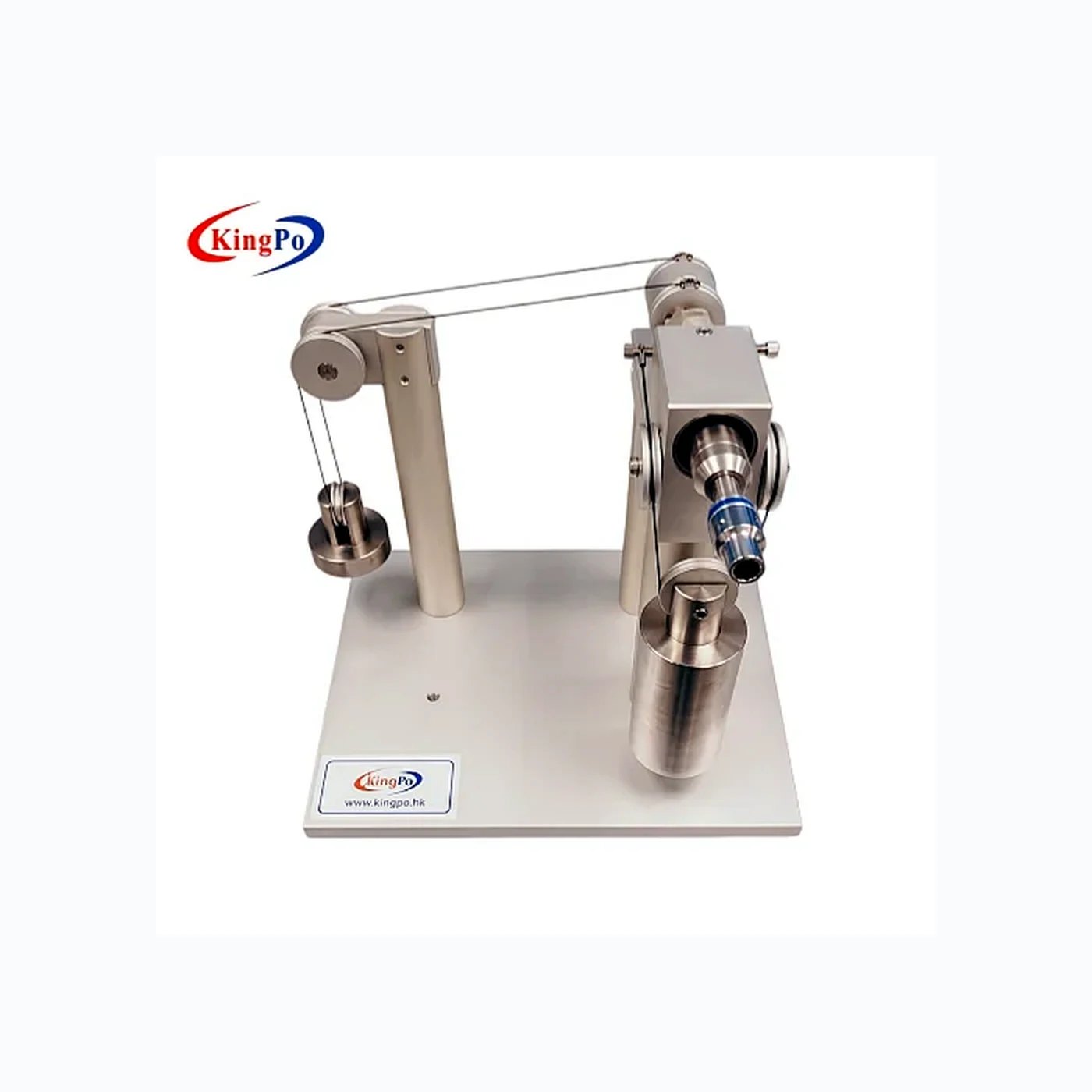

The Connector Assembly Device is a manual preparation fixture used to connect a reference connector and test sample under controlled force and torque. It supports downstream leakage, unscrewing and overriding workflows; it is not itself a leakage or force-measurement instrument.
Select the reference connector, sample side and downstream method first. The applicable standard and connector type determine the assembly force, torque weight and holding time that should be used.
- Choose the reference connector and test sample for the required ISO 80369 method.
- Insert the reference connector hex-end into the assembly device.
- Hold the sample or rotating collar, then push and turn through the prescribed assembly action.
- Transfer the assembled pair to the selected leakage, unscrewing, overriding or other verification step.
Documented equipment scope
- Manual operation without electrical power or compressed air
- One axial force weight and six torque weights
- Aluminum and stainless-steel construction
- Operation instruction, warranty card and packing list
Confirm before quotation
- Connector family, sample side and reference connector Figure
- Assembly, unscrewing or overriding purpose
- Required force, torque and holding-time condition
- Downstream tester, fixture and document package
The supplied manual records operating ranges and example torque-weight workflows. Final values and pass/fail wording must be confirmed against the selected connector type, current controlled standard and approved procedure.
Key information
| Assembly force | 26.5 N - 27.5 N |
|---|---|
| Assembly torque for slip connectors | 0.018 N.m - 0.17 N.m |
| Main materials | Aluminum and stainless steel |
| Accessories | 1 axial force-weight; 6 torque-weights |
| Documents | Operation instruction, warranty card and packing list |
| Source material | KingPo supplied operating documentation |
What to confirm before ordering
| Standard / Figure | Confirm applicable standard and product family |
|---|---|
| Product type | fixture or accessory |
| Connector family | fixture system family |
| Information for quotation | Mating connector, method, quantity, fixture and certificate needs |
| Calibration | Discuss certificate scope and traceability needs for the requested product scope |
Share the accessory, fixture, certificate and shipping needs so KingPo can identify the right product scope.
Request documents for the exact product configuration
Datasheets, manuals, controlled drawings, report examples, calibration records and certificate wording should match the selected Figure, Annex, fixture, instrument channel and order configuration.
| Product image | Available on this page |
|---|---|
| Technical drawing | Controlled drawing requested when applicable |
| Datasheet | Request for selected product scope |
| Request types | Datasheet request, Configuration checklist request |
| Calibration | Certificate scope discussed for the selected product scope |
| Certificate | Certificate wording confirmed with quotation scope |
How this product fits into the method
Use the test method to decide whether the order needs only this item, a matched counterpart, a fixture, test equipment or a complete set.
RFQ context
Quote requests should include product, Figure, standard part, connector side, mating counterpart, test method, fixture need, quantity, calibration requirement and certificate expectation.
Request this productFAQ
Is this an electrically powered tester?
KingPo supplied documentation describes the connector assembly device as compact and manually operated, with no electrical supply or compressed air requirement.
Which equipment pages should be quoted with it?
For leakage measurement, pair the setup discussion with the Annex B/C or Annex D tester. For axial-load separation, pair it with the Annex F axial-load tester when the sample setup requires force-controlled assembly context.
