ISO 80369-20 Annex D Subatmospheric Pressure Leakage
Method page for ISO 80369-20 Annex D subatmospheric-pressure air leakage equipment, connector setup questions and reporting boundaries.
Select the method before selecting the equipment
Subatmospheric-pressure air leakage uses the KingPo ISO80369-20 Annex D tester. KingPo supplied documentation identifies a 220V 50Hz, 1-station tester with 0 to -90 kPa pressure range, +/-0.25% accuracy and 0-9999 s settable test time.
ISO 80369-20 Annex D relationship is supported by KingPo supplied operating material.
Build the measurement chain around the connector
Identify the device under test, select the correct mating or reference interface, support it with the required fixture, connect the measurement channel, and define the result record before requesting equipment.

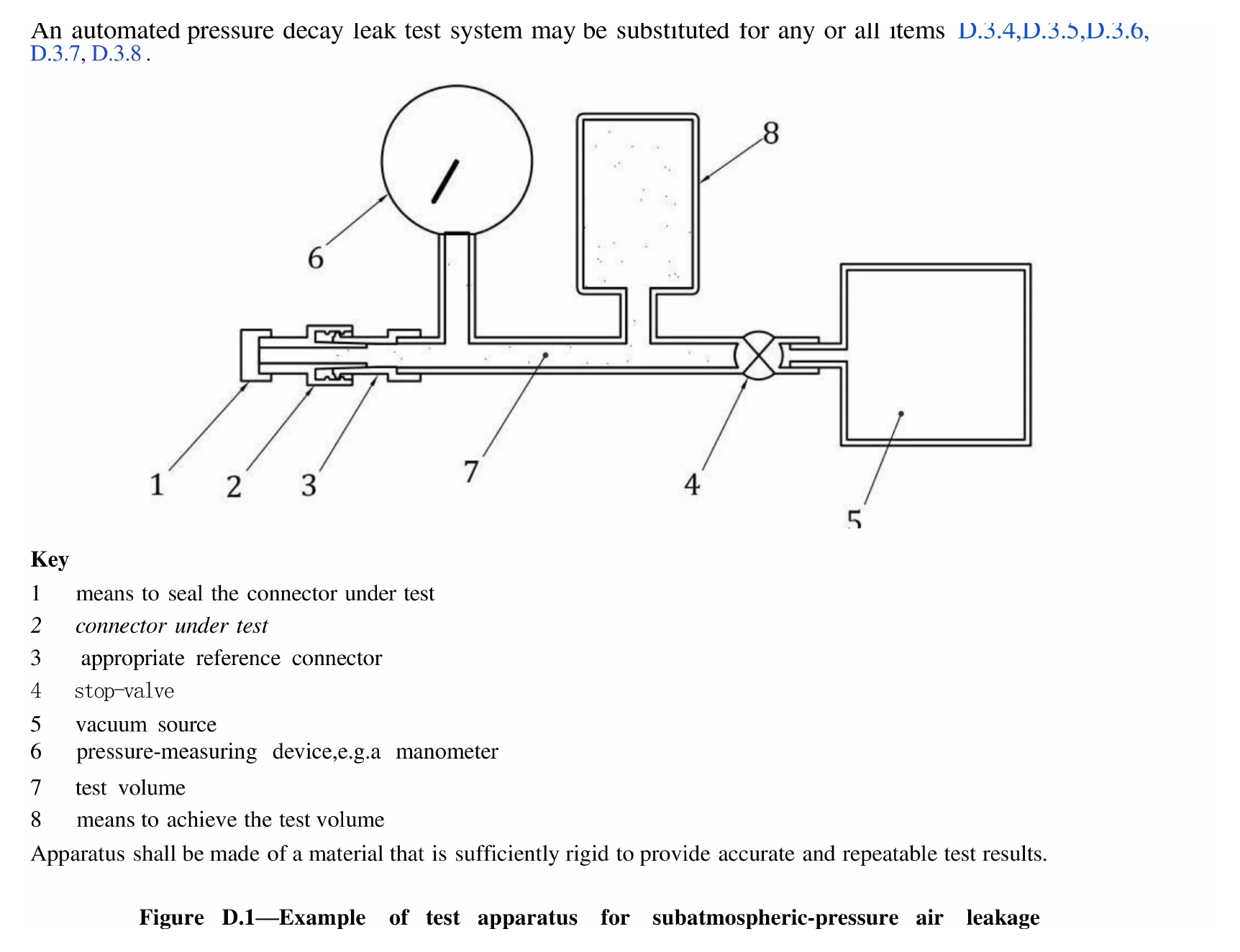

Figure D.1 subatmospheric apparatus reference
Use this drawing to discuss the vacuum source, measurement channel, controlled test volume, specimen connection and reference connector required by the selected Annex D method. It is an engineering reference, not a product photo or controlled manufacturing drawing.
Click the drawing to inspect it at a larger size. The selected KingPo equipment page remains the product setup and quotation reference.
Annex D subatmospheric air leakage equipment controls

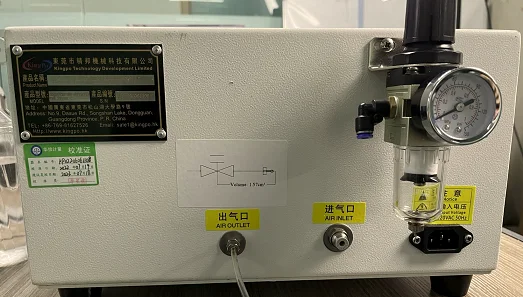

KingPo supplied Annex D documentation describes the reduced-pressure air leakage workflow: stable desktop placement, power connection, touch-screen Pressure function, sample installation, time/pressure/sample-volume setup, Start command and pressure valve adjustment.
- Power supply: 220V 50Hz; one test station.
- Pressure range: 0 to -90 kPa; accuracy: +/-0.25%; settable time: 0-9999 s.
- The sample-volume note includes the sample plus internal pipe volume, recorded as 1.57 cm3 in the supplied material.
Confirm the sample, setup and required records
State whether the buyer needs a setup note, equipment datasheet, result report or certificate discussion.
Laboratory preparation
- Confirm that the requested method is Annex D subatmospheric air leakage rather than Annex B/C pressure or liquid leakage.
- Place the device on a stable desktop, connect power, turn on the power switch and select the touch-screen Pressure function.
- Install the sample, set test time, test pressure and sample volume, start the test and adjust the air pressure valve to the set value.
- KingPo supplied documentation names leakage-rate fields, pressure change, test period, curve display and print report controls.
Send these details with your inquiry
Use equipment photos for product identity. Workflow screenshots are supporting visuals for quotation preparation.
