ISO 80369-20 Resistance to Overriding
Method page for resistance-to-overriding workflows, controlled assembly fixture context, torque-weight preparation and clause-specific RFQ review.
Select the method before selecting the equipment
Resistance to overriding depends on the applicable connector standard and defined pass/fail criteria. KingPo Connector Assembly Device documentation supports the force-and-torque setup used for Luer lock connector discussions.
Use the device manual for setup and equipment information. Confirm the standard, connector family and order configuration before applying criteria related to lugs, threads, collar behavior or another connector-specific feature.

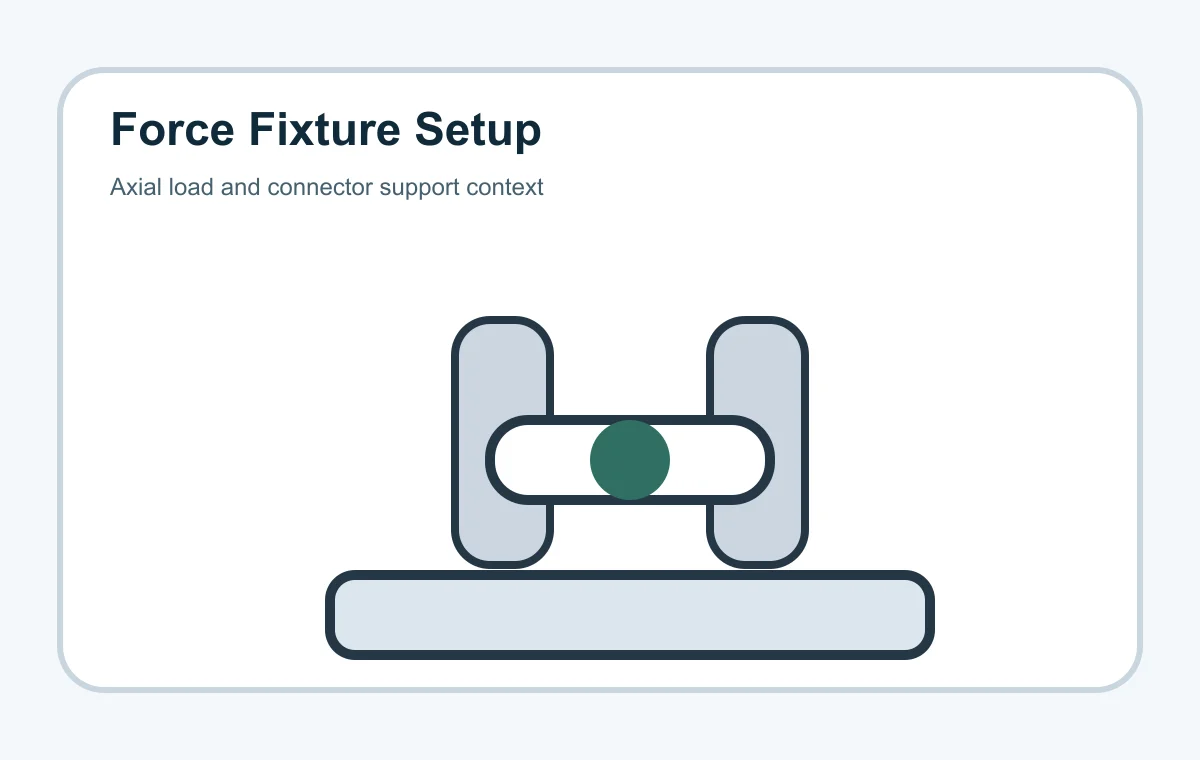

Build the measurement chain around the connector
Identify the device under test, select the correct mating or reference interface, support it with the required fixture, connect the measurement channel, and define the result record before requesting equipment.
Connector assembly controls for the overriding workflow
KingPo supplied material identifies the Connector Assembly Device as the manual fixture for applying force and torque during connector assembly. The same material describes torque-weight selection for resistance-to-overriding workflow support.
- Assembly force range recorded in the supplied material: 26.5-27.5 N.
- Assembly torque for slip connectors recorded in the supplied material: 0.018-0.17 N.m.
- Overriding workflow note recorded in the supplied material: 0.15-0.17 N.m for 5-10 s.
Confirm the sample, setup and required records
Ask for connector type, mating/reference side, requested ISO 80369 part, torque condition, sample quantity and whether the report should quote the standard clause.
Laboratory preparation
- Confirm the connector family and whether the tested part is a luer lock connector before using luer-specific overriding wording.
- Use the Connector Assembly Device to assemble the reference connector and sample under controlled force-and-torque conditions.
- KingPo supplied documentation references a 0.15-0.17 N.m overriding torque-weight condition held for 5-10 s.
- Keep any final statement about threads, lugs or override failure tied to the selected standard clause and buyer-provided sample type.
Send these details with your inquiry
Use the device photos to show the force-weight and torque-weight fixture role. Avoid publishing unconfirmed acceptance limits as product claims.
