Test Methods

Choose the measured behavior before choosing the equipment

ISO 80369 testing decisions begin with the condition being checked: sealing, vacuum leakage, retention force, unscrewing torque, dimensional fit or material response.

Leakage TestingSubatmospheric Air Leakage

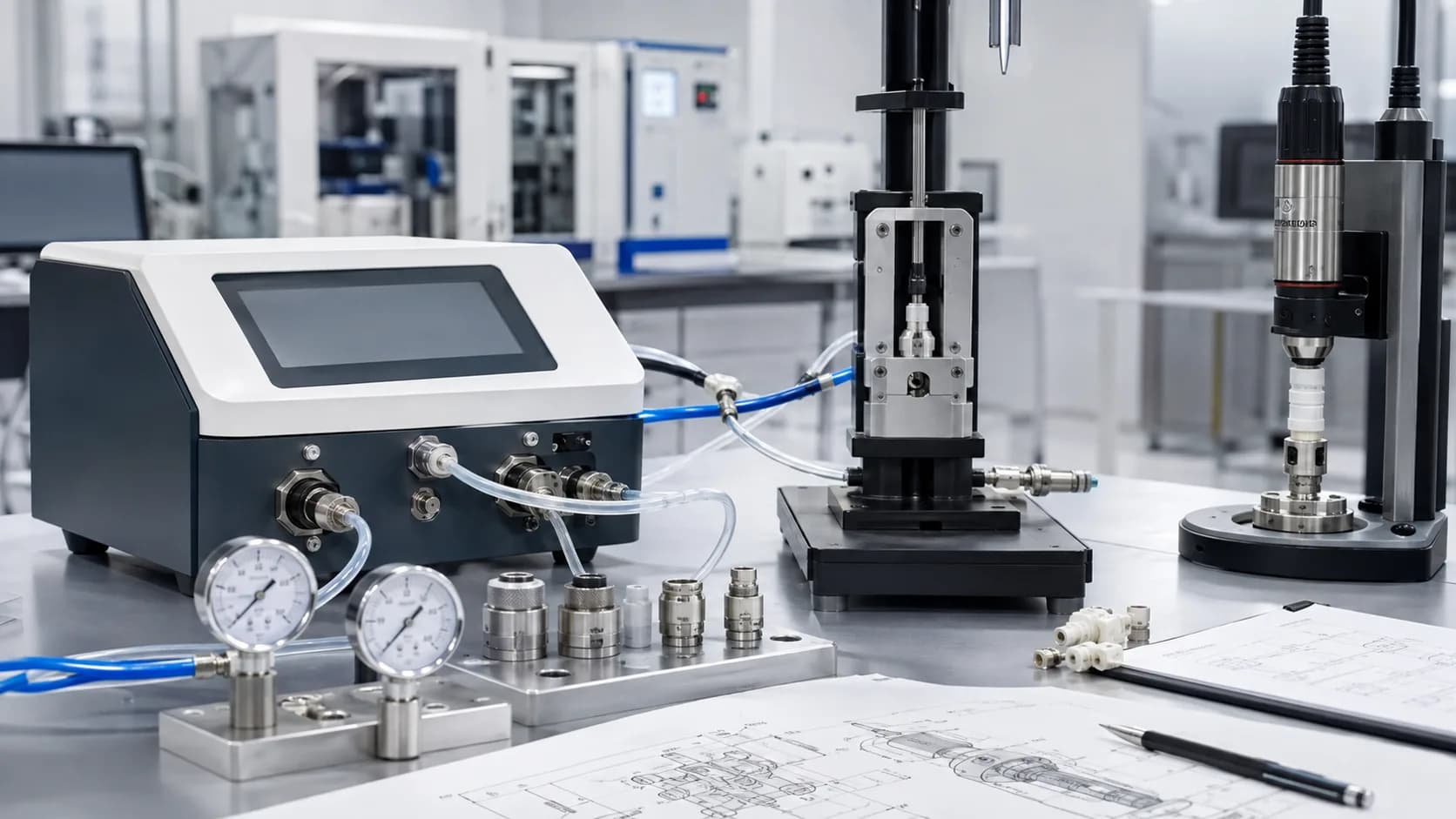

KingPo ISO 80369 pressure leakage and connector test method setup
Setup chain

DUT to mating interface, fixture, measurement channel and result record.

Method evidence

Testing methods become practical when the instrument and fixture are visible

Compare the physical tester, fixture or gauge used for each method before confirming the complete test setup.

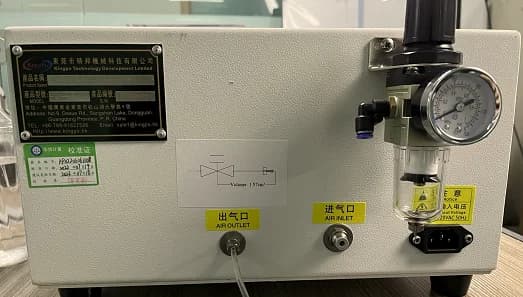

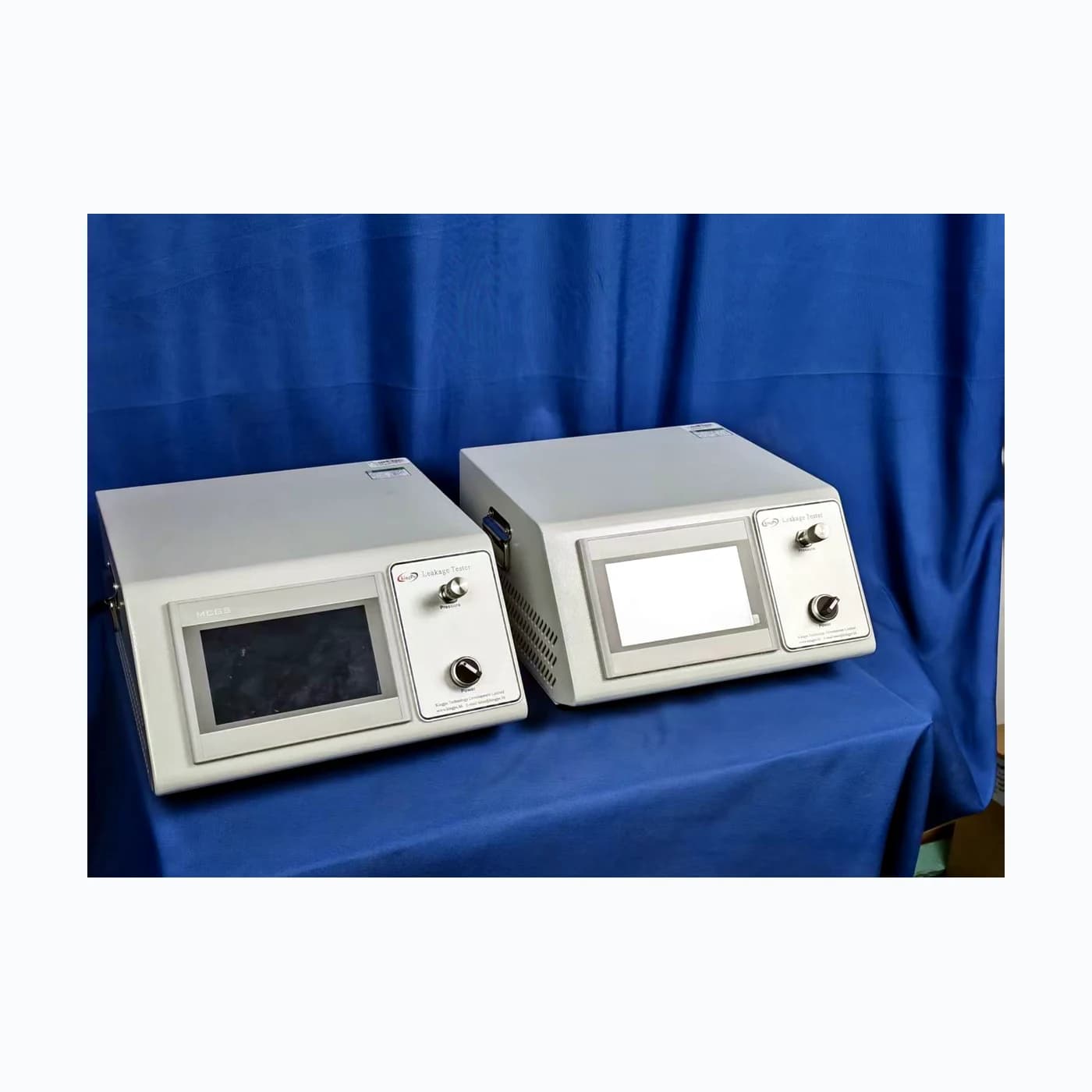

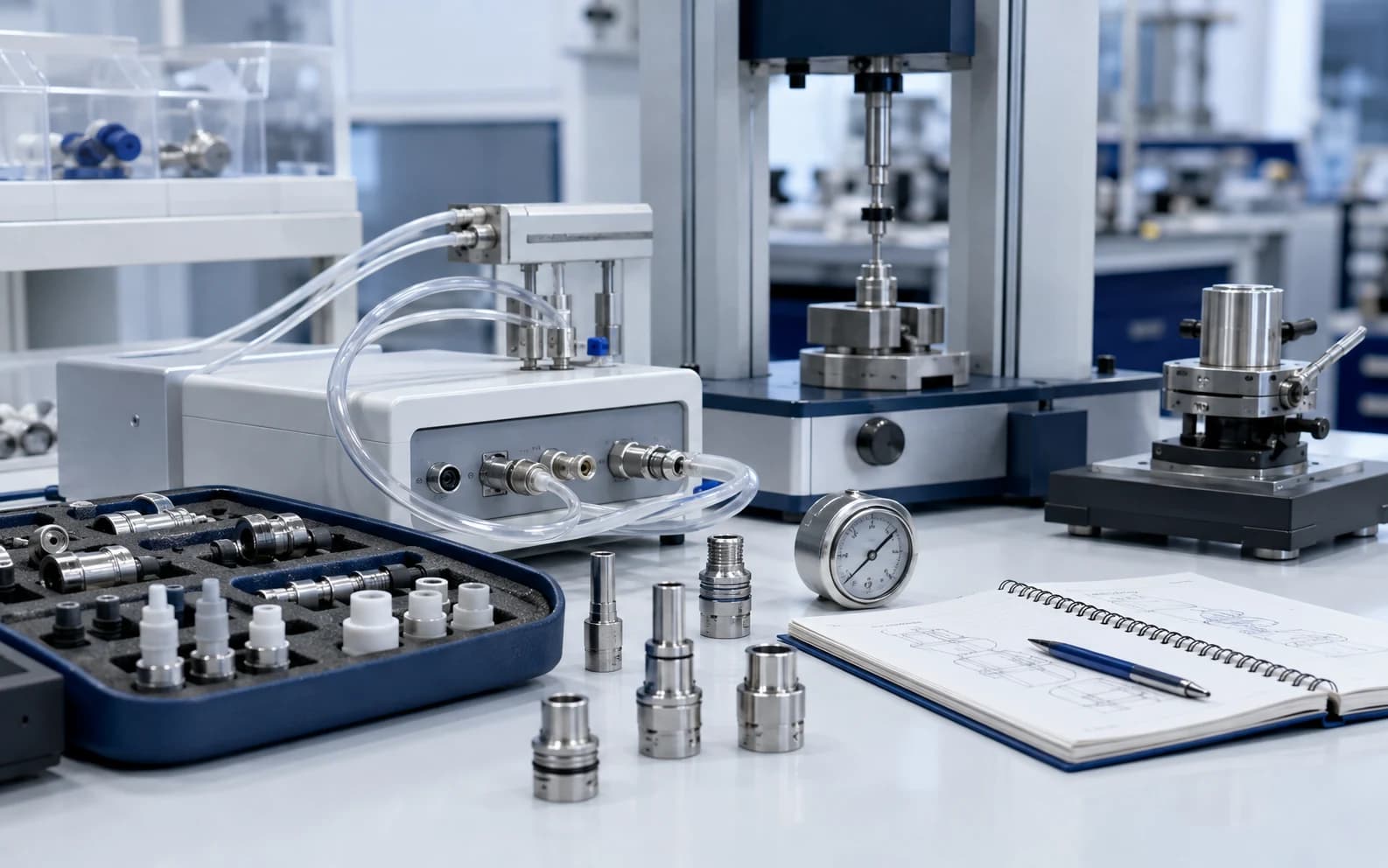

ISO 80369-20 liquid leakage tester productLeakageISO 80369 leakage and vacuum workflow bench with tubing, fixtures and gaugesVacuum leakageConnector assembly device for controlled method setupAssembly controlKingPo connector gauge set in caseGauge checks
Select by evidence needed

Choose the method family by the result the buyer must defend

Testing laboratories and QA teams usually know the evidence they need before they know the exact product. Method pages keep equipment, fixture and documentation decisions together.

Leakage or vacuum leakage

Pressure / vacuum channel

Define medium, pressure condition, DUT connection and fixture before selecting Annex B, C or D equipment.

Mechanical retention

Force / torque setup

Separate axial separation, unscrewing torque and overriding so the fixture and result record match the method.

Fit or dimensional inspection

Gauge selection

Confirm sample side, Luer slip/lock condition and certificate expectation before asking for a gauge set.

Method families

Testing tasks grouped by what the laboratory needs to measure

Compare pressure and leakage behavior, mechanical retention, dimensional inspection and material conditioning to identify the equipment and fixtures required for the test.

Family

Leakage and pressure

Checks whether the connected interface maintains the required sealing behavior under the selected pressure or vacuum condition.

  • Leakage Testing
  • Subatmospheric Air Leakage
  1. DUT
  2. Reference connector
  3. Fixture
  4. Pressure or vacuum channel
  5. Result record
Family

Mechanical retention

Checks whether the connector interface remains assembled or separates under a defined mechanical action.

  • Axial Separation
  • Unscrewing Torque
  1. Mated pair
  2. Alignment fixture
  3. Force or torque instrument
  4. Displacement or torque record
Family

Dimensional and material checks

Supports inspection of dimensional fit and material behavior before or alongside functional testing.

  • Dimensional Verification
  • Stress Cracking
  1. Gauge or drawing basis
  2. Conditioning step
  3. Inspection method
  4. Calibration question
Leakage setup example

From application standard to fixture and pressure equipment

Leakage and vacuum tests are easier to specify when the standard, connector side, reference interface, fixture and pressure channel are discussed together.

01Confirm the application standard
02Identify the tested connector side
03Select the reference or mating interface
04Choose the leakage method
05Match fixture and pressure equipment
06Define report and service scope
Individual methods

Open the method page that matches the measured condition

Liquid / air leakage

Leakage Testing

Select the leakage setup by application standard, connector side, reference connector, fixture and pressure channel.

  • Standard
  • Reference connector
  • Fixture
  • Pressure channel
Vacuum path

Subatmospheric Air Leakage

Method page for subatmospheric leakage setup before selecting vacuum equipment, fixtures and documents.

  • Sample side
  • Mating interface
  • Fixture
  • Tester
Force path

Axial Separation

Force test setup for connector separation, mating interface and fixture selection.

  • Load direction
  • Connector pair
  • Holding fixture
  • Force channel
Torque path

Unscrewing Torque

Torque setup for lock-interface behavior, assembly condition and fixture planning.

  • Lock interface
  • Assembly
  • Torque direction
  • Fixture
Conditioning

Stress Cracking

Conditioning and inspection planning for connector material integrity checks.

  • Material
  • Conditioning
  • Reference connector
  • Inspection
Dimensional checks

Dimensional Verification

Verification planning for gauges, measured features, reference connector dimensions and certificate wording.

  • Measured feature
  • Gauge
  • Drawing
  • Certificate
