ISO 80369 Leakage Test Equipment Family
Family page for pressure decay, air pressure, and related leakage testing equipment structures.
Use this family page to decide scope before opening individual products
Product families are most useful when they explain the role in the test setup, the applicable standard, likely test method and documents needed for quotation.
Ask KingPo with the family context
Send the product family, connector side, standard part, method requirement, fixture need, quantity and document expectation so the exact item scope can be confirmed.
Prepare family RFQBuild the test chain before choosing the equipment model
ISO 80369 leakage work is not just a tester purchase. The pressure source, measurement channel, reference connector, fixture, DUT support, selected method and documentation scope need to be reviewed together so the equipment can be quoted with the correct interfaces.
- Pressure decay uses a controlled pressure condition and result record.
- Liquid or air leakage methods may need different fixtures and connector support.
- Reference connectors and calibration questions should be included in the RFQ.
Leakage methods lead to different equipment questions
Typical system components
| Pressure source | Stable source selected for the intended method |
|---|---|
| Measurement channel | Pressure, timing and result-recording requirement |
| Fixture | Connector support and DUT positioning |
| Reference connector | Figure item or matched counterpart where applicable |
| Calibration | Discuss pressure channel, reference item and certificate scope |
RFQ checklist
Include the ISO 80369 part, leakage method, connector type, mating counterpart, pressure condition, fixture need, quantity, certificate requirement and whether a complete test setup is preferred.
Request leakage setup supportProducts in This Family
Product pages include role, setup, documentation, calibration and RFQ context.
ISO 80369-20 Annex B/C Pressure and Liquid Leakage Tester
KingPo supplied documentation identifies this tester for ISO 80369-20 Annex B pressure leakage and Annex C positive-pressure liquid leakage workflows.

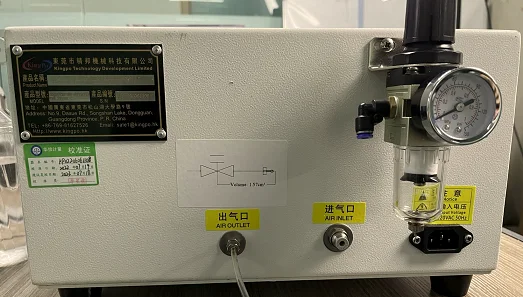

ISO 80369-20 Annex D Subatmospheric Air Leakage Tester
KingPo supplied documentation identifies this tester for ISO 80369-20 Annex D subatmospheric-pressure air leakage workflows.
SetupISO 80369 Multi-Mode Leakage Test Station
A leakage test station concept for RFQs that need pressure, fixture and connector requirements reviewed together.
Related standards, requirements and test methods
Confirm the applicable standard, product family and test method, then include the required quantity, fixtures and documents with your inquiry.
ISO 80369-20
Common test method relationship hub for ISO 80369 performance workflows.
Pressure Decay Leakage Requirement
Illustrative relationship page for pressure decay leakage equipment and product families.
ISO 80369-20 Annex B/C Leakage Method
Compare ISO 80369-20 Annex B pressure-decay testing with Annex C positive-pressure liquid leakage, including equipment, connectors, fixtures and report requirements.
Air Pressure Leakage
Method page for air pressure leakage workflows.
ISO 80369-20 Annex D Subatmospheric Pressure Leakage
Method page for ISO 80369-20 Annex D subatmospheric-pressure air leakage equipment, connector setup questions and reporting boundaries.
